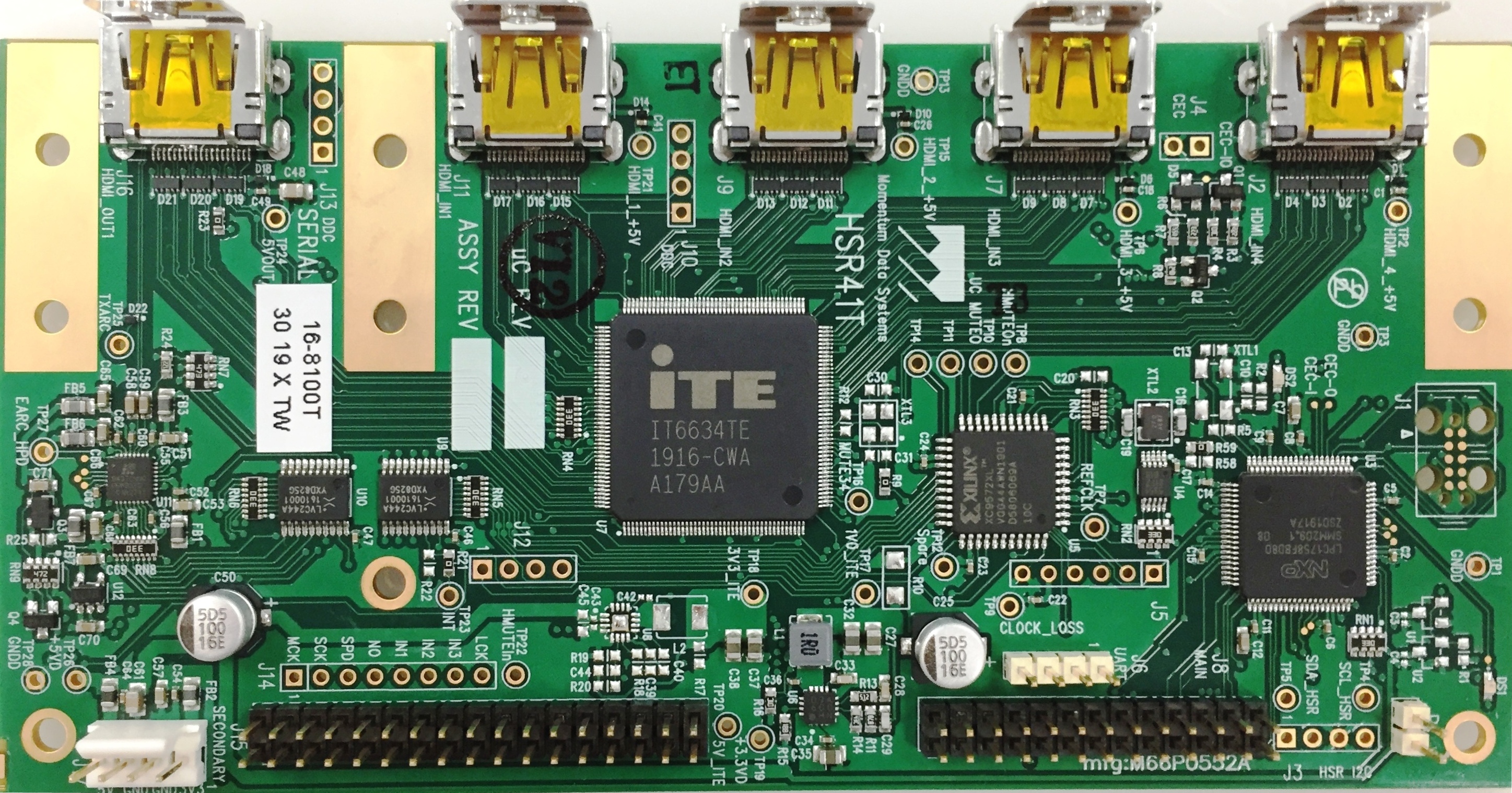

MDS’ 6th-generation HDMI 2.0b switcher-repeater module series with 4K video and eARC support.  The T series consists of three variants: HSR-1T (1:1), HSR-41T (4:1) and HSR-82T (8:2).
Designed around ITE Technology’s 600 MHz IT6634 HDMI transceivers, they support 4K @ 24/30/50/60 Hz with HDCP 2.3 on all inputs and outputs for high-value 4K HDMI content.  Also support Dolby Vision and HDR/HDR-10 and HLG formats.

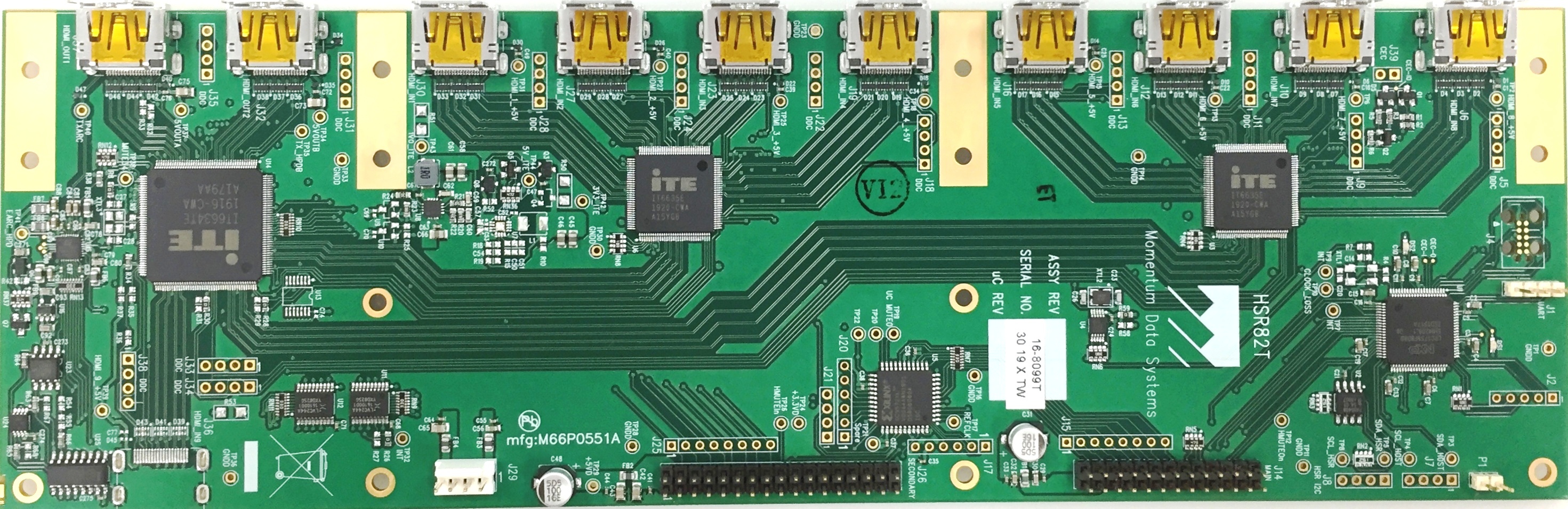

With the HSR-82T, the 8:2 configuration is standard; however, both 7:2 and 9:2 can be ordered as custom build options.
The 9th input then resides on the opposite (forward) edge of the pcb from the other 8 rear-panel inputs, to facilitate a front-panel HDMI input.
Features audio extraction and insertion capabilities.
Click here to download pdfClick here to download datasheet
